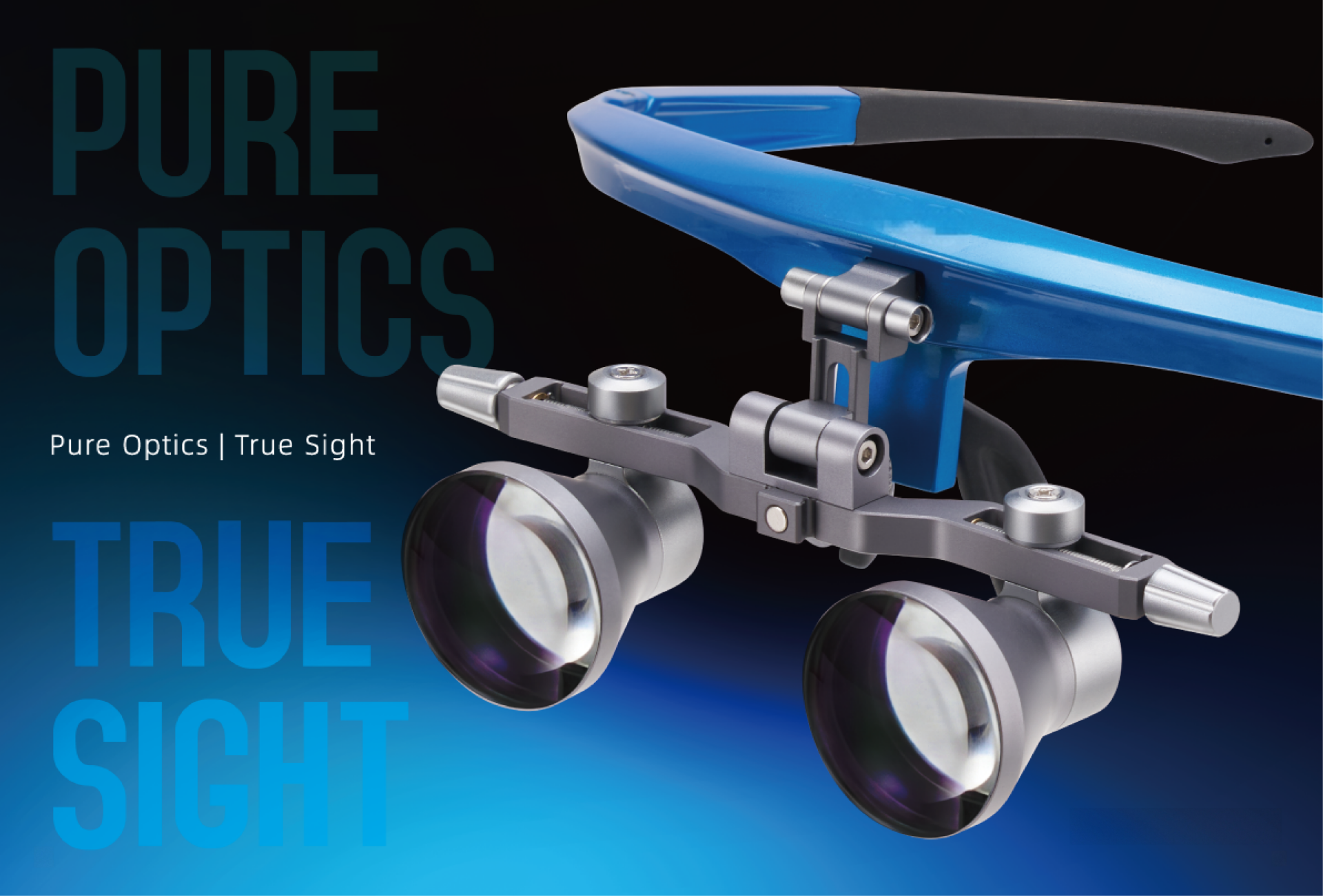

Pure Optics: Uncompromised Visual Fidelity

Experience magnification in its purest form. The Oradenix Straight Optics Flip-Up Loupes deliver exceptional light transmission and high-definition clarity that reveals every detail with vivid accuracy. Designed for seamless performance, it brings you a crisp, undistorted view of the working field while supporting a focused, professional workflow. Elevate your daily clinical precision with a perfect balance of true-to-life visualization and reliable, multi-layer optical excellence.

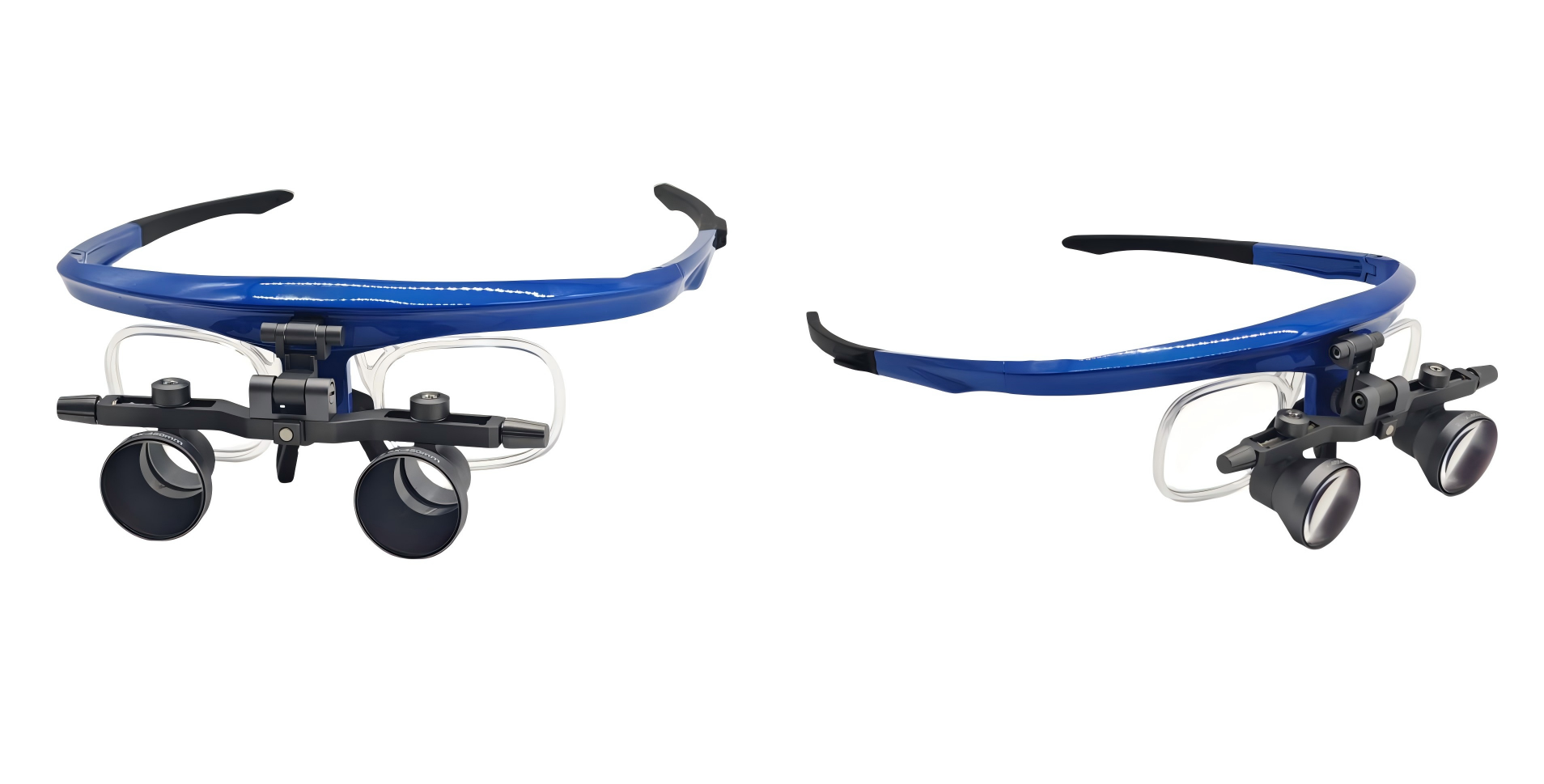

Precision Engineering Meets Custom Vision: Advanced Detachable Rx Frame

Every detail is crafted for professional excellence. The Oradenix Straight Optics Loupes showcase sophisticated mechanical components, including independent manual knobs for precise interpupillary distance alignment. Strategically positioned behind the premium glass barrels, the detachable transparent Rx insert offers a seamless, dual-layer solution for custom vision integration. This innovative structure allows medical specialists to effortlessly incorporate personalized corrective lenses while enjoying pristine optical magnification and uncompromised structural stability.

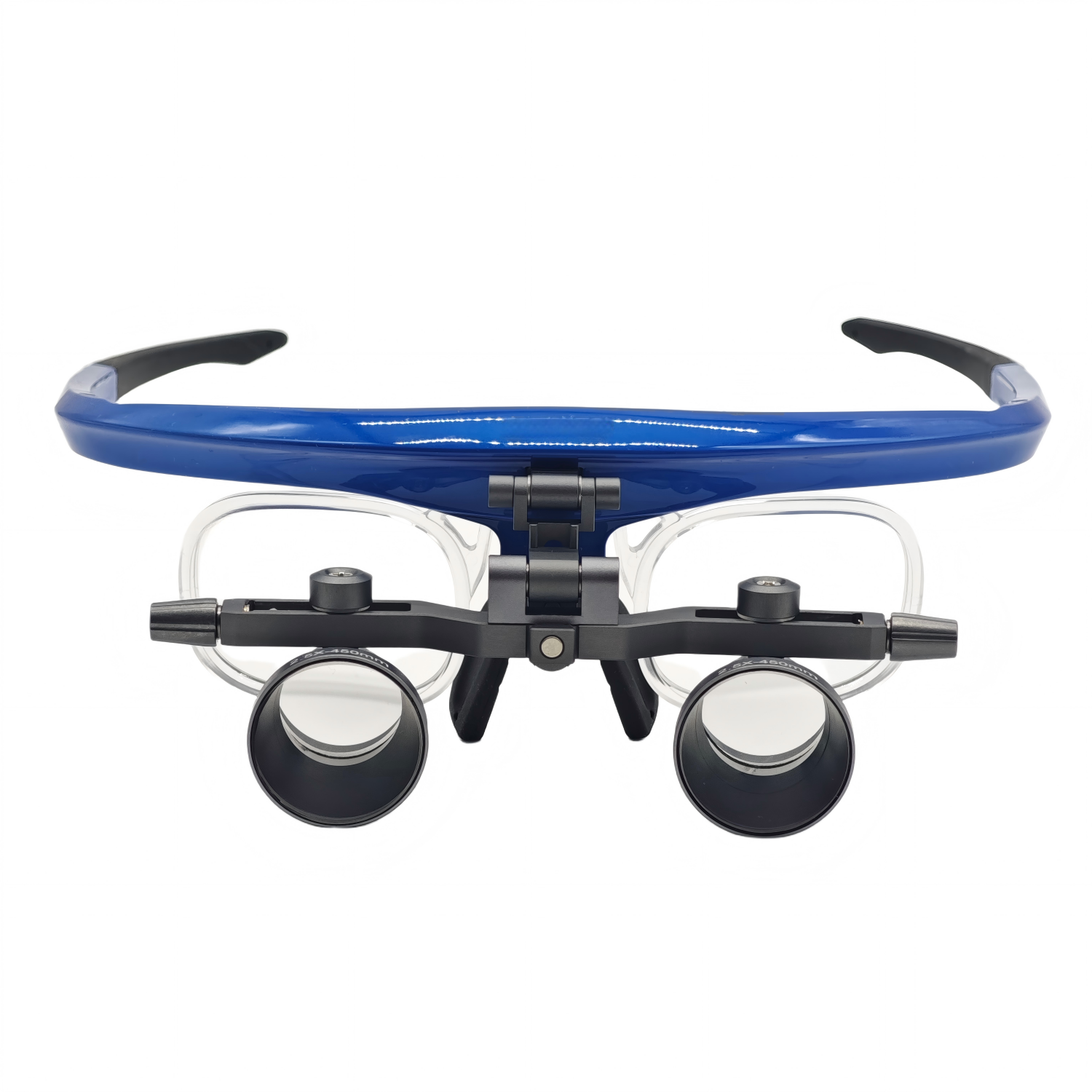

  • Oradenix premium straight optics flip-up dental loupes with adjustable IPD and detachable transparent Rx insert frame.

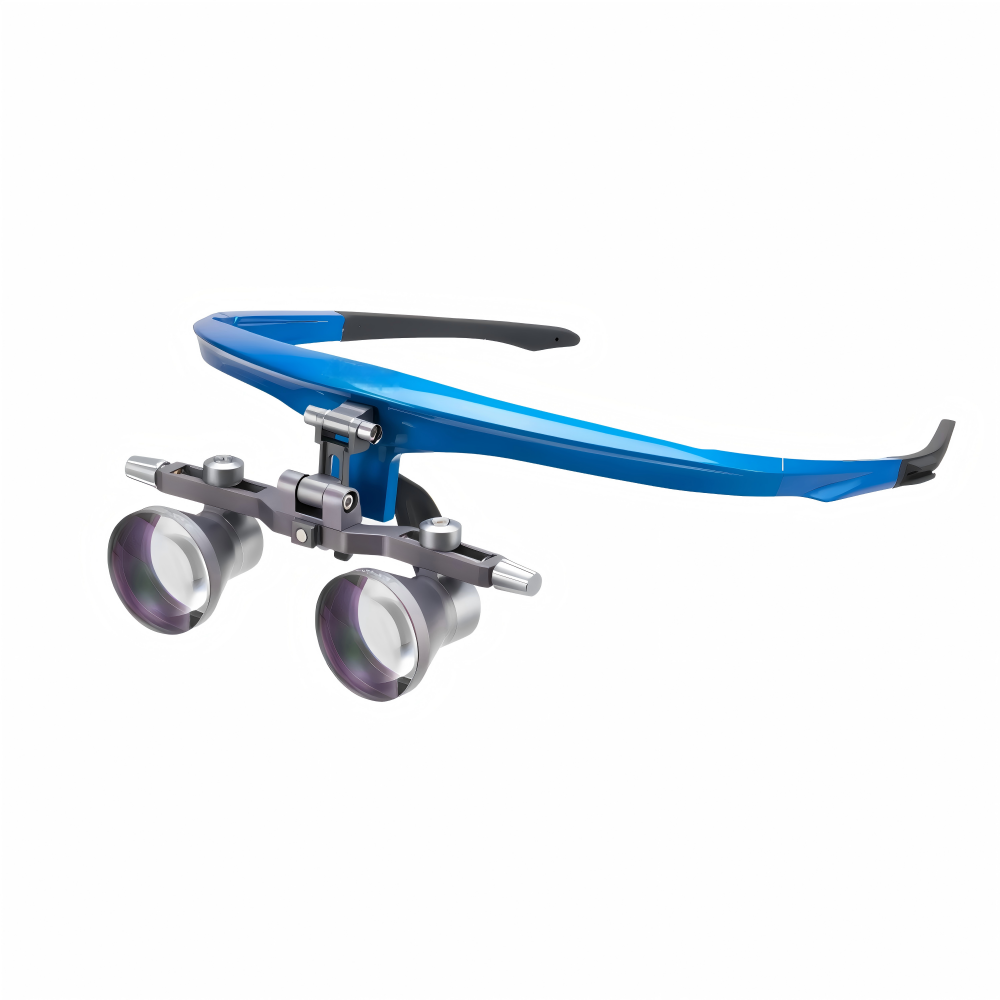

  • Professional flip-up medical & dental loupes with a sleek blue frame and high-definition precision optics. Ultra-lightweight 60g design for all-day comfort. Shot from a 45-degree angle on a pure white background.

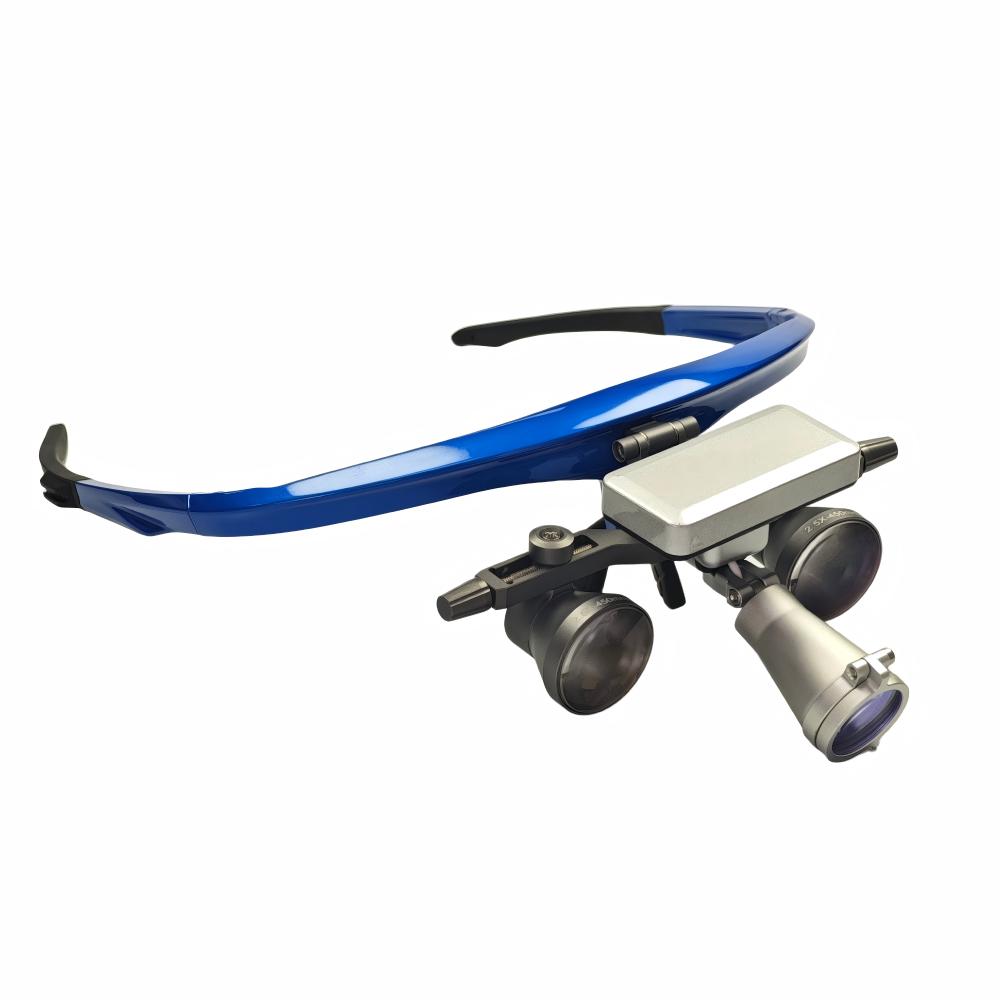

  • A high-definition wireless LED surgical headlight with a magnetic battery pack securely mounted on a professional blue-frame flip-up dental loupe system (2.5x or 3.5x magnification), showcasing an integrated cable-free clinical illumination and magnification solution.

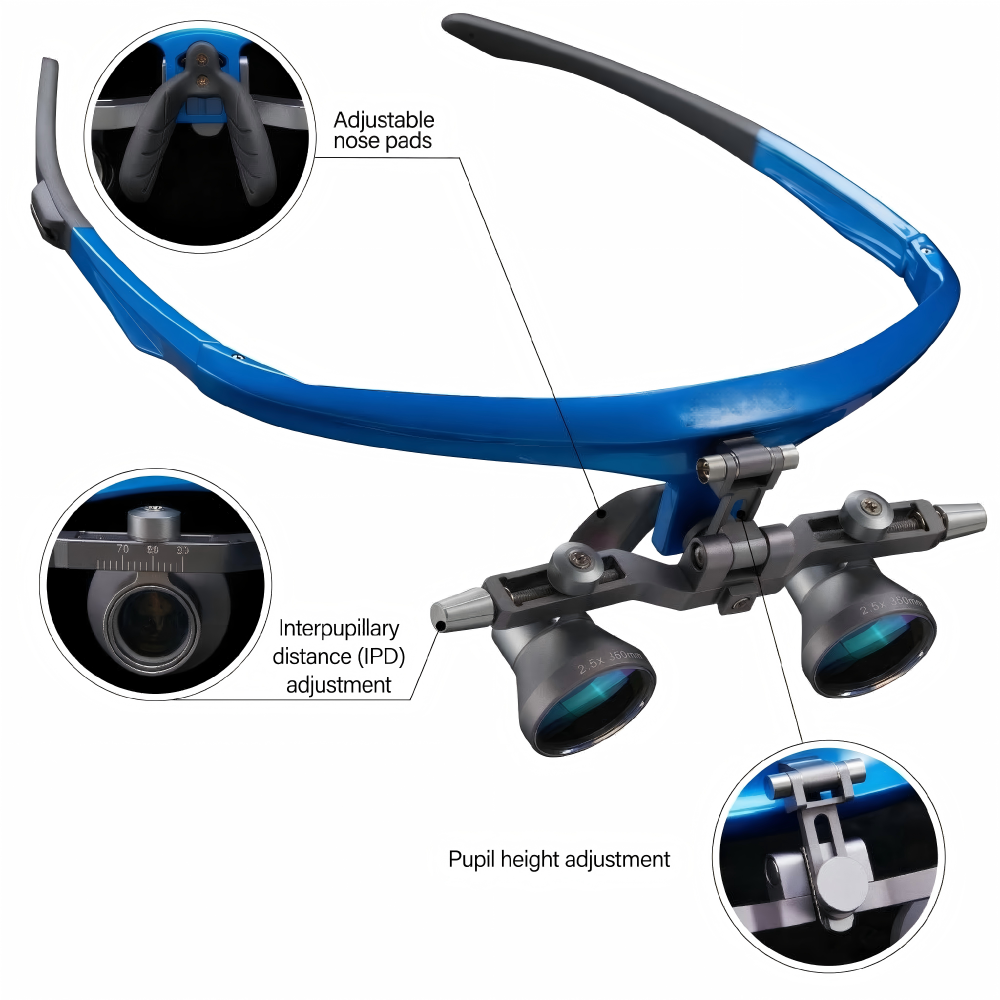

  • Detailed close-up of the professional flip-up medical loupes on a pure white background. Infographic calls out key adjustable features: adjustable nose pads, interpupillary distance (IPD) adjustment, and pupil height adjustment for a personalized fit. Highlights the convenience of the flip-up mechanism.

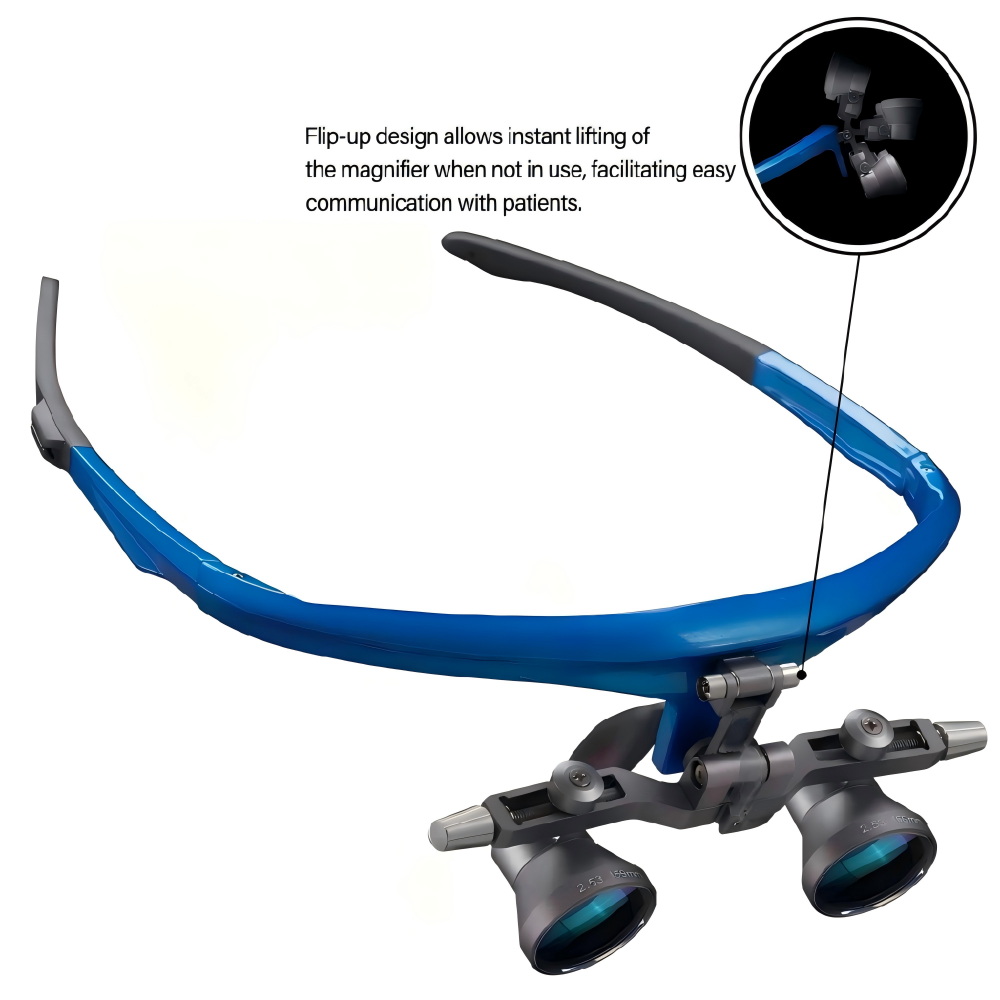

  • Detailed view of the medical loupes on a white background, featuring a specialized Flip-up design. A close-up infographic in the top right corner shows the instant lifting of the magnifier. This mechanism allows for unobstructed vision and facilitates easy communication with patients without removing the loupes.
1 6

Dental & Surgical Flip-Up Loupes with Detachable Rx Insert 2.5x 3.5x Ultra-Lightweight Magnifier with Adjustable IPD

Dental & Surgical Flip-Up Loupes with Detachable Rx Insert 2.5x 3.5x Ultra-Lightweight Magnifier with Adjustable IPD

$349.00
$599.00 $349.00
Sale Sold out
Shipping calculated at checkout.
Magnification
  • Free Global Shipping
  • Lifetime Warranty
  • 30-Day Return

Core Features

Seamless Flip-Up Workflow Efficiency

Features a precision-engineered flip-up mechanism that allows for instant switching between magnified and natural vision. This facilitates smooth, professional communication with patients and enhances clinical workflow without the need to adjust or remove the frame.

Precision Customization & Ergonomic Stability

Supports comprehensive adjustments, including Interpupillary Distance (IPD) and nose pad positioning. This ensures a secure, personalized fit tailored to your unique facial structure, providing exceptional stability for long-term professional use.

High-Definition Optics & Superior Visual Fidelity

Equipped with an advanced optical system that delivers edge-to-edge clarity and true-to-life color reproduction. The optimized light transmission ensures a bright, sharp image, providing optimal visual support for high-precision clinical tasks.

Aerospace-Grade Lightweight Construction

Constructed from high-strength aerospace-grade alloys and advanced composites. Weighing approximately 60g, it is engineered for a balanced, lightweight feel and maximum durability during extended clinical sessions.

Expansive Clinical Workspace

Offers a versatile working distance (up to 580mm) and an extra-wide field of view (up to 150mm). This provides a generous visual workspace that supports a variety of restorative, diagnostic, and precision dental procedures.

Technical Specifications Sheet


Magnification Working Distance (mm) Field of View (mm) Depth of Field (mm) Interpupillary Distance
 Range (mm)		 Weight (g)
2.5x 450-550 110-150 115-180 50-80 60

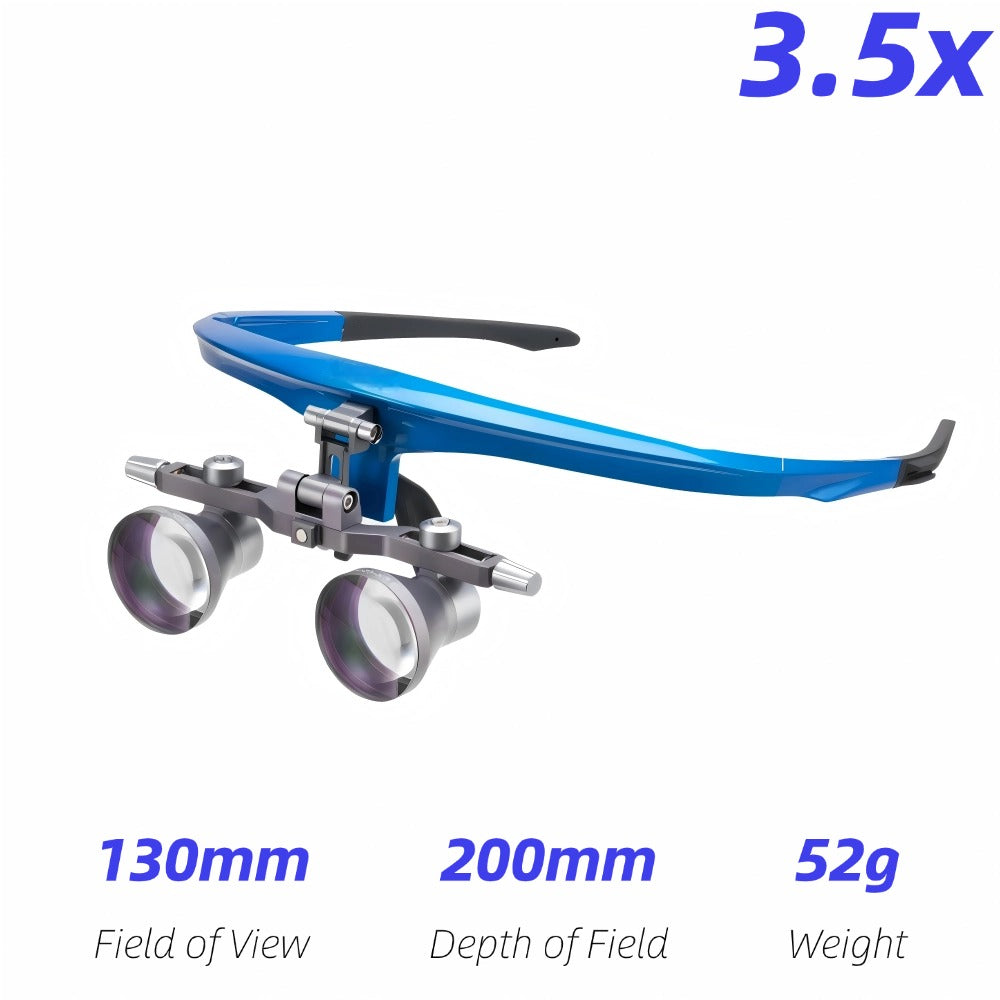

3.5x 300-580 110-130 200 50-80 73
View full details

FAQ

1. What are the main advantages of the Flip-up design?

The Flip-up offers maximum versatility. The "Flip-up" mechanism allows you to lift the optical barrels out of your line of sight without removing the glasses, which is ideal for talking to patients or checking charts. It also features independent Interpupillary Distance (IPD) knobs for precise manual calibration.

2. Is there a learning curve for these loupes?

 The series uses a traditional straight-line optical path, making it extremely easy to adapt to. If you have used loupes before or are a first-time user, you will likely achieve full hand-eye coordination within the first hour of use.

3. How do I choose the right magnification ?

1. 2.5x Magnification – The "Entry-Level Standard"

Best for: General dentistry, hygiene, examinations, and dental students.

Key Advantage: It offers the widest field of view and the most generous depth of field. If you are new to magnification, the 2.5x provides a very bright image and is the easiest to adapt to for all-day use. It’s perfect for maintaining situational awareness while getting the extra clarity you need for basic procedures.

2. 3.5x Magnification – The "Versatile Professional"

Best for: Restorative work, crown and bridge preparation, and minor oral surgery.

Key Advantage: Our most popular choice for experienced practitioners. It provides a significant boost in detail without sacrificing too much field of view. At 3.5x, you get the precision required for fine margin finishing and identifying micro-fractures that are invisible to the naked eye.

4. Can I wear these over my own prescription glasses?

Yes. The series is designed with a generous frame clearance, allowing it to be worn comfortably over most prescription eyewear. We also provide a specialized RX frame insert if you prefer to have your prescription lenses fitted directly into the system.

5. How heavy are the Flip-up loupes?

We use high-grade lightweight aluminum and reinforced polymers to keep the weight of the optical barrels around 60g. This reduces pressure on the bridge of your nose, ensuring comfort during long clinical procedures.

6. Does the hinge stay stable during work?

Our Flip-up mechanism is built with a dual-friction hinge system. Once you set the angle, it remains locked in place even during movement, ensuring your view never shifts during a procedure.

7. Is the wireless LED headlight compatible with this model?

Yes, the Flip-up is fully compatible with our 35,000 Lux magnetic LED headlight. The light mounts securely on the bridge, providing shadow-free illumination that follows your line of sight perfectly.

8. How do I clean and maintain my loupes?

Use the provided microfiber cloth and a mild optical cleaning solution. Avoid autoclaving or immersing the loupes in liquid. For the lenses, a gentle wipe is all that’s needed to maintain the high-definition apochromatic coating.

9. What is covered under the Lifetime Technical Warranty?

Oradenix provides a limited lifetime warranty covering the structural integrity of the frames and the optical alignment of the prisms. We ensure that your equipment remains a reliable partner throughout your professional career.

10. How is global shipping handled, and will there be customs fees?

We provide insured worldwide express shipping. While shipping is free for most regions, buyers are responsible for any local import duties or taxes. We recommend monitoring your tracking number to ensure smooth customs cooperation.
