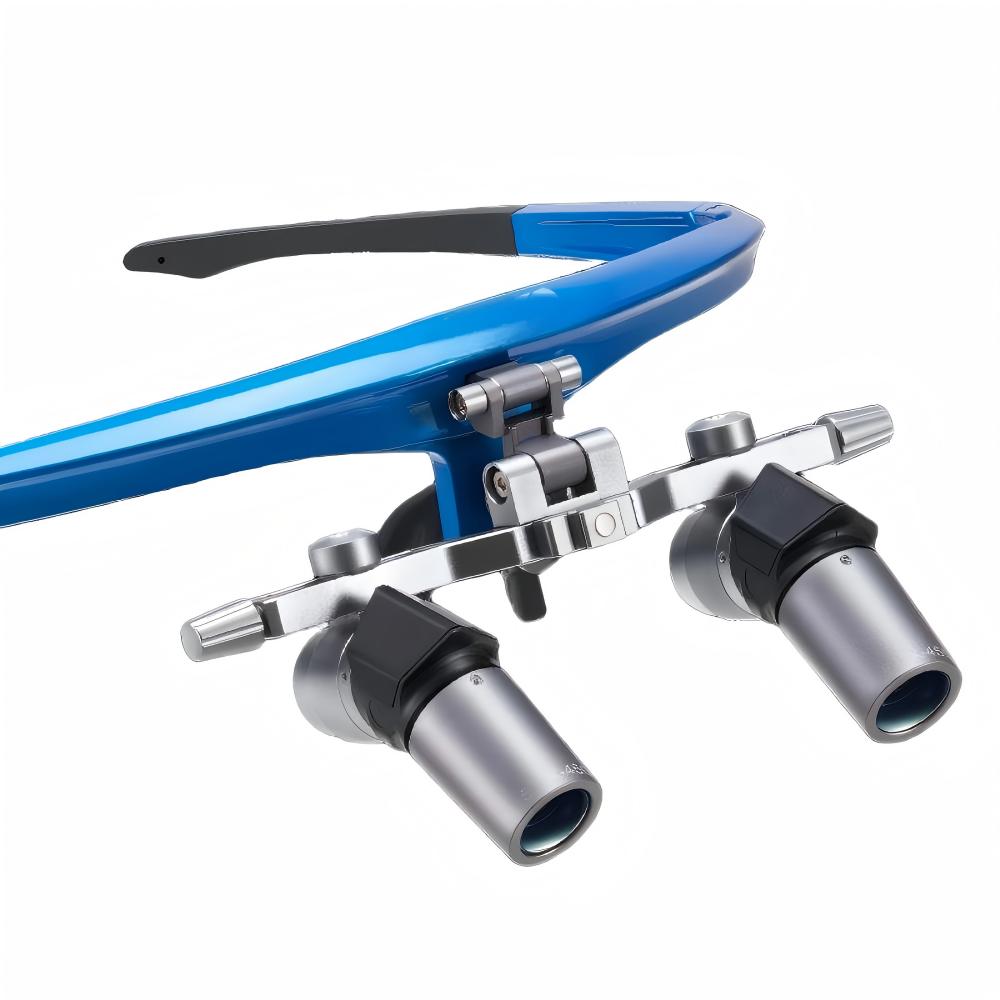

• A high-resolution photograph of a professional blue-frame ergonomic 45-degree deflection flip-up loupe system, showcasing the specific refractive optics designed for neutral neck positioning and precise flat-panel viewing. Key visible features include the flip-up hinge, adjustable interpupillary distance (IPD) knobs, and the precision 3.0x to 6.0x magnification barrels.

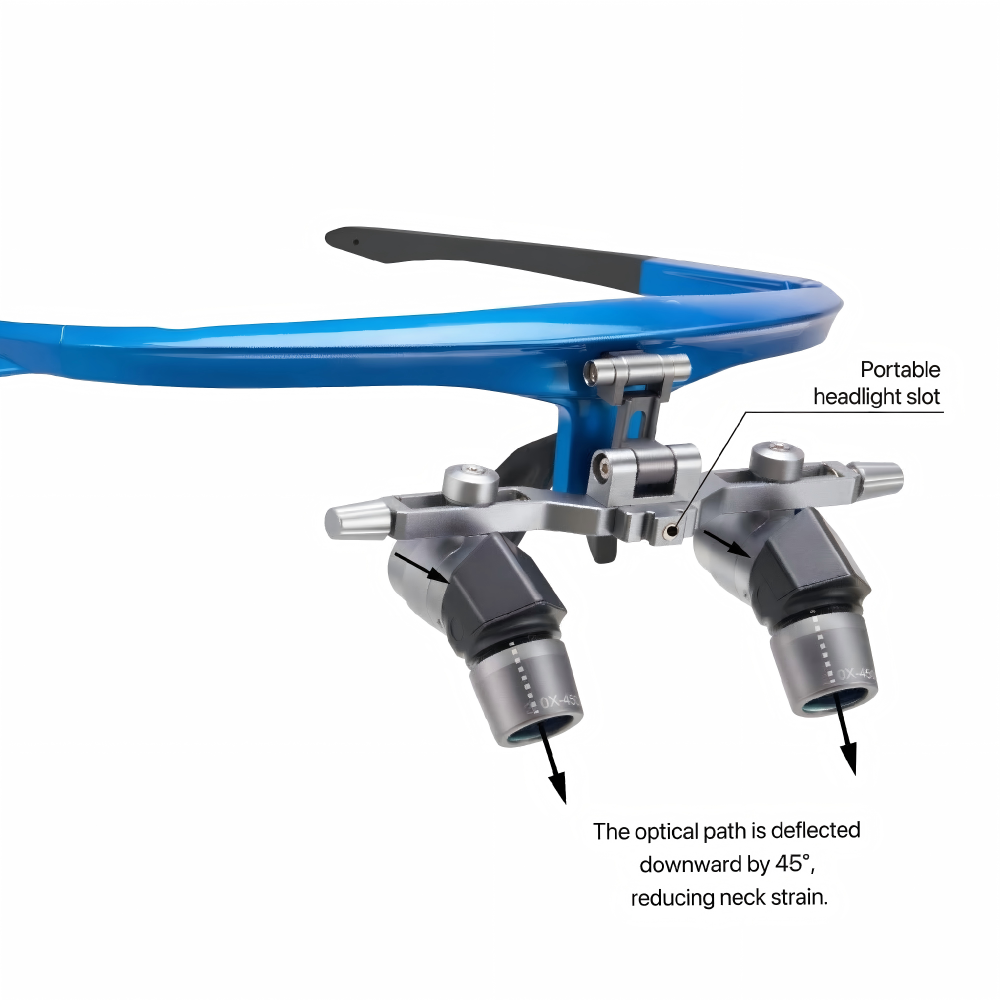

  • A technical diagram of a blue-frame ergonomic flip-up loupe system. Arrows and text labels demonstrate that the optical path is deflected downward by 45 degrees to reduce neck strain. The image also points out a portable headlight slot on the adjustable bridge for integrated illumination.

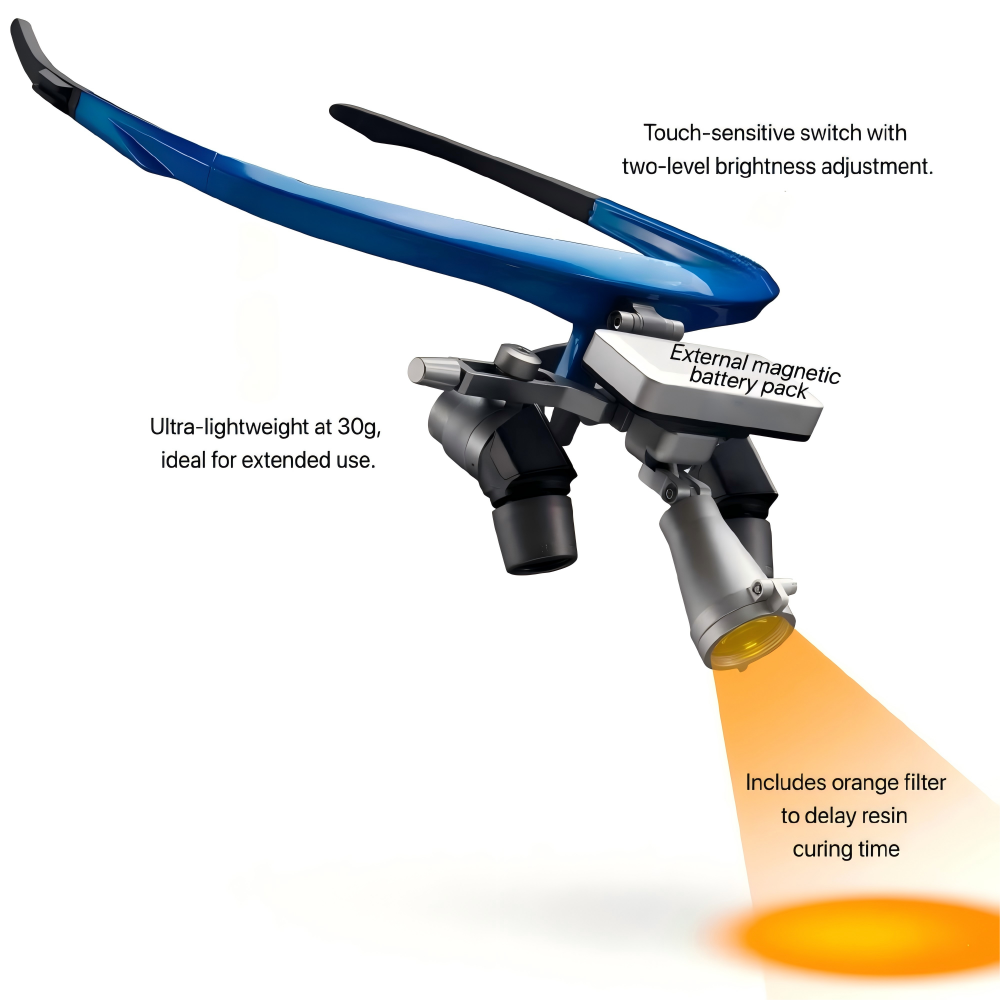

  • A technical product image of a wireless LED surgical headlight mounted on a blue loupe frame. Annotations highlight the 30g ultra-lightweight design, the external magnetic battery pack, and the touch-sensitive switch for two-level brightness adjustment. It also demonstrates an integrated orange filter used to delay resin curing time during dental procedures.
1 6

Ergo 45° Flip-Up Dental & Surgical Deflection Loupes with Adjustable IPD 3.0x-6.0x

Ergo 45° Flip-Up Dental & Surgical Deflection Loupes with Adjustable IPD 3.0x-6.0x

$749.00
$849.00 $749.00
Sale Sold out
Shipping calculated at checkout.
Magnification
  • Free Global Shipping
  • Lifetime Warranty
  • 30-Day Return

Core Features:

Advanced Ergonomic 45° Deflection Design

Features high-quality prisms that deflect the optical path downward by 45°, enabling a natural, upright working posture. This design optimizes clinical ergonomics, supporting long-term professional comfort and sustained focus during extended procedures.

High-Precision Apochromatic Optical System

Engineered with advanced apochromatic optics to ensure superior color accuracy and edge-to-edge clarity. It delivers high-definition imagery with exceptional fidelity, providing optimal visual support for intricate clinical tasks.

Versatile Magnification for Professional Needs

Available in 3.0x to 6.0x magnification with an expansive field of view (up to 105mm) and an optimized depth of field, catering to a wide range of restorative and precision dental procedures.

Precision Flip-Up Mechanism & Custom Fit

Features a stable Flip-Up hinge system for seamless switching between magnified and unmagnified viewing. The fully adjustable interpupillary distance (IPD) and vertical viewing angles ensure a personalized, secure fit for every professional.

Ultra-Lightweight All-Day Performance

Engineered for lightweight performance (64g–67g), these loupes are perfectly balanced for stable, all-day wear. The streamlined frame design ensures a high-end professional aesthetic without compromising on durability or stability.

Technical Specifications Sheet


Magnification Working Distance (mm) Field of View (mm) Depth of Field (mm) Interpupillary Distance
 Range (mm)		 Weight (g)

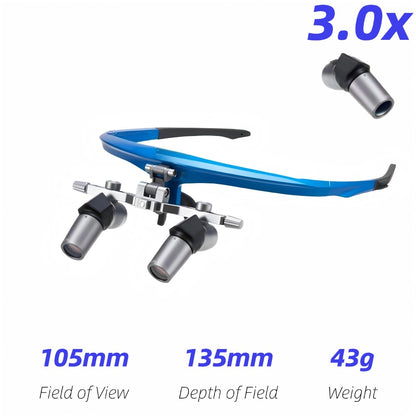

3.0x 450-550 85-105 95-135 50-80 64

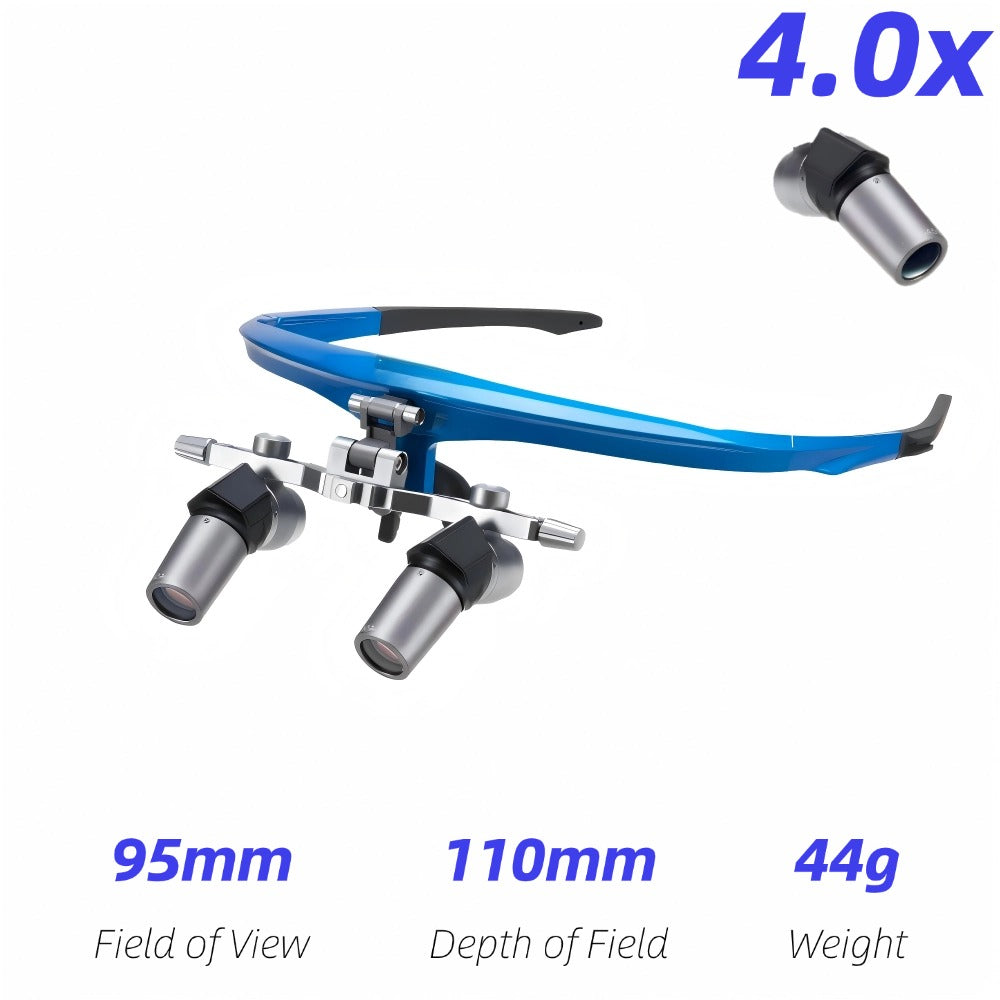

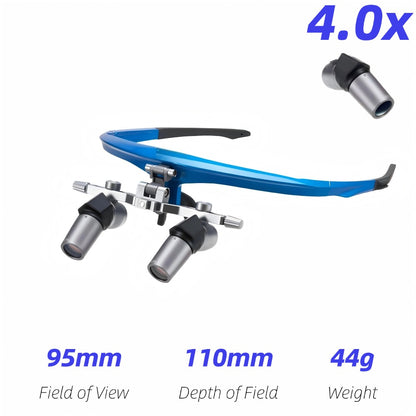

4.0x 450-550 70-95 80-110 50-80 65
5.0x 450-550 60-75 70-115 50-80 66

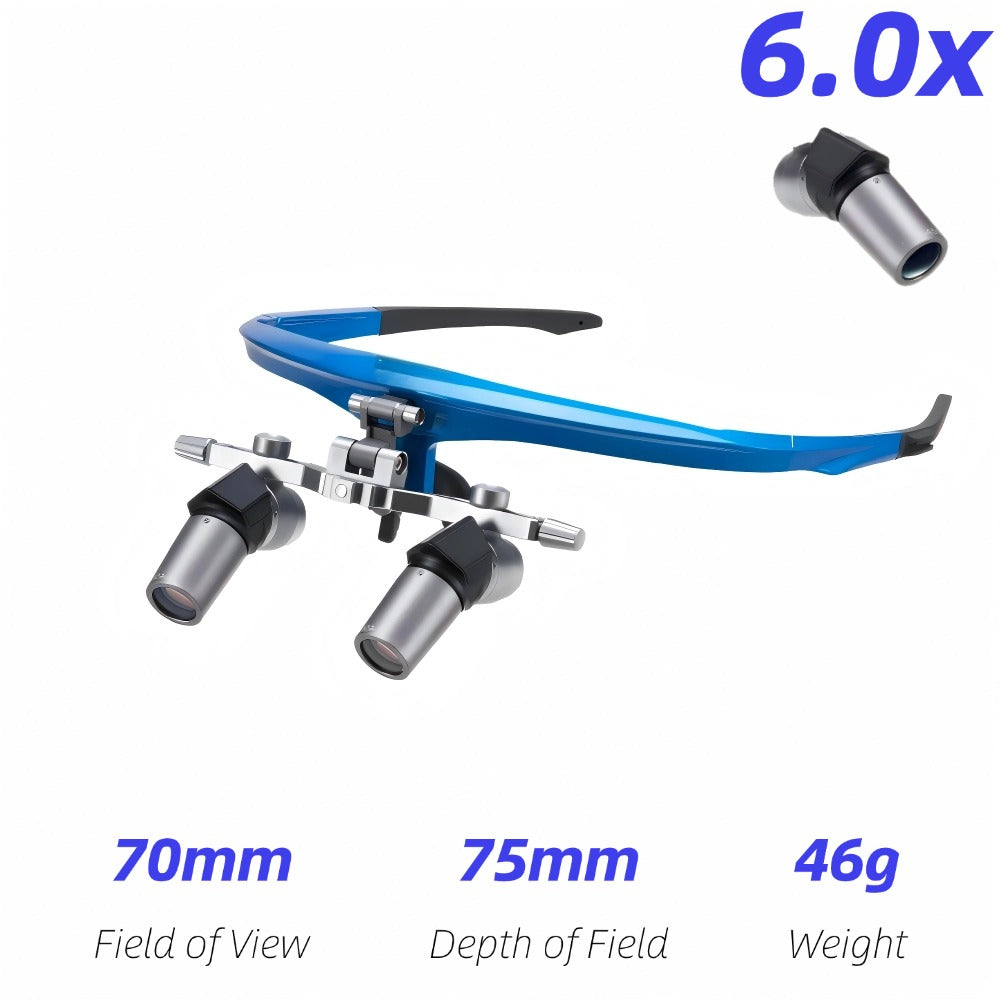

6.0x 450-550 50-70 55-75 50-80 67
View full details

FAQ

1.How do I choose the right magnification for my practice?

3.0x – The "Daily Driver" (General Practice & Hygiene)

  • Best for: General examinations, hygiene, and basic restorative work.
  • Why choose it: It offers the widest field of view (up to 105mm) and the deepest depth of field. If you are new to magnification or 45° deflection, this is the easiest to adapt to while providing excellent clarity for daily tasks.

4.0x – The "Versatile Balanced" (Restorative & Cosmetic)

  • Best for: Crown and bridge work, aesthetic dentistry, and general surgery.
  • Why choose it: This is the "sweet spot" for many clinicians. It provides a significant leap in detail over 3.0x while maintaining a generous enough field of view to see multiple quadrants.

5.0x – The "Precision Specialist" (Endodontics & Fixed Prosthodontics)

  • Best for: Root canal therapy, fine preparations, and intricate margin finishing.
  • Why choose it: When micro-level detail is non-negotiable. At 5.0x, you can identify fine fractures and canal orifices with ease. Note: The field of view is narrower (approx. 75mm), so it requires a more stable head position.

6.0x – The "Microsurgery Master" (Complex Surgery & Micro-Endo)

  • Best for: Microsurgery, complex endodontics, and high-precision suturing.
  • Why choose it: For the specialist who requires the ultimate visual advantage. It delivers extreme HD detail, though it is recommended for users who are already comfortable with high-magnification optics.

2. How exactly does the 45° design protect my neck and back?

Traditional loupes force you to tilt your head downward, putting significant strain on the cervical spine. Our 45° deflection prisms allow you to look straight ahead while the optical path is directed downward. This maintains a neutral, upright posture, effectively preventing long-term occupational strain.

3. What makes the Apochromatic Optical System different?

Our advanced apochromatic optics are engineered to eliminate chromatic aberration (color fringing). This results in superior color fidelity and edge-to-edge clarity, providing a high-definition view that is essential for precision microsurgery and intricate procedures.

4. Are these loupes comfortable for an 8-hour shift?

Yes. Weighing only 64g–67g (excluding the frame), these are among the lightest ergonomic loupes on the market. The weight is balanced across the bridge and ears to ensure zero-pressure comfort during long clinical sessions.

5. How do the magnetic battery packs work with the LED headlight?

The integrated 35,000 Lux headlight uses a magnetic quick-connect system. This allows you to "hot-swap" batteries with one hand without removing the loupes. Each pack provides 4–6 hours of continuous light, ensuring you never run out of illumination.

6. Can I adjust the Interpupillary Distance (IPD) by myself?

Absolutely. The SCE300 series features a wide IPD adjustment range (50mm–80mm). You can easily calibrate the distance between the two optical barrels to match your unique eye position for a single, clear, and focused image.

7. Can I use these loupes with my own prescription (RX) lenses?

Yes. Our frames are designed to accommodate high-quality RX inserts. If you wear prescription glasses, we provide guidance on how to integrate your lenses into the Oradenix system for optimal vision.

8. What is covered under the Lifetime Technical Warranty?

Oradenix provides a limited lifetime warranty covering the structural integrity of the frames and the optical alignment of the prisms. We ensure that your equipment remains a reliable partner throughout your professional career.

9. Is the orange filter necessary for the headlight?

The included orange filter is highly recommended for professionals working with light-cured resins. It prevents premature curing of materials under the powerful 35,000 Lux LED light, giving you more time for precise placement.
