Experience 0° Cervical Comfort: Elevate Your Ergonomics and Longevity

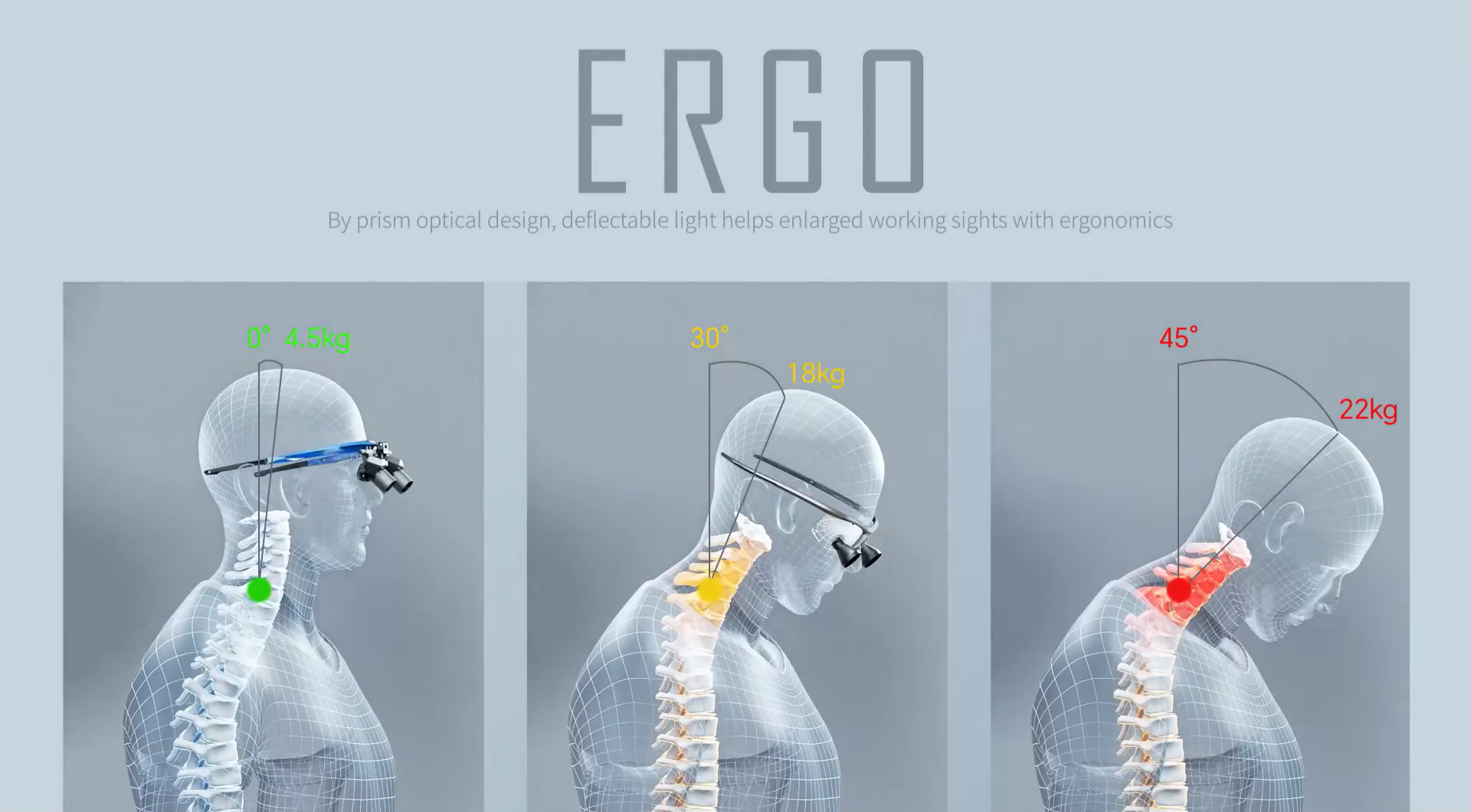

Maximize your daily comfort and professional efficiency. While traditional working postures can increase head-weight strain up to 22kg, the Oradenix Ergo Deflection Loupes bring you back to an optimal 0° posture—reducing the cervical load to a natural 4.5kg. Powered by advanced prism deflection optics, it allows you to maintain a perfectly upright position while achieving a crystal-clear, magnified view of the working area. Upgrade to a healthier, sustainable posture and extend your career with ultimate comfort.
Seamless Prescription Integration: Designed for Your Custom Vision

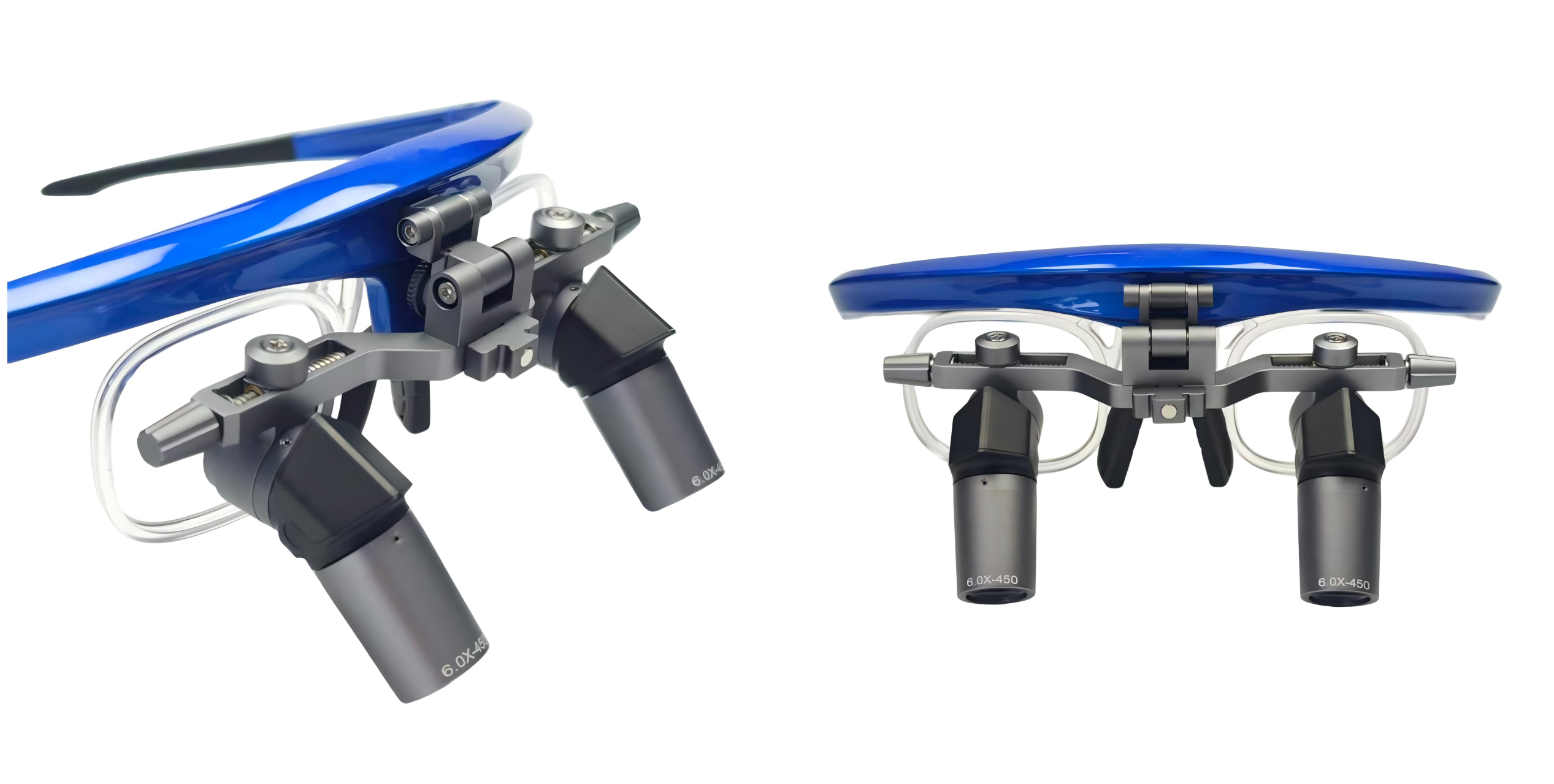

Achieve absolute clarity tailored precisely to your eyes. The Oradenix Ergo Deflection Loupes feature an independent, detachable transparent inner frame (Rx Insert) located behind the optical barrels. This smart, dual-layer design eliminates the need for complex lens drilling. Simply bring this insert to your preferred local optical provider to install your personalized corrective lenses. Enjoy the perfect combination of professional magnification, flexible vision customization, and long-term cost efficiency.

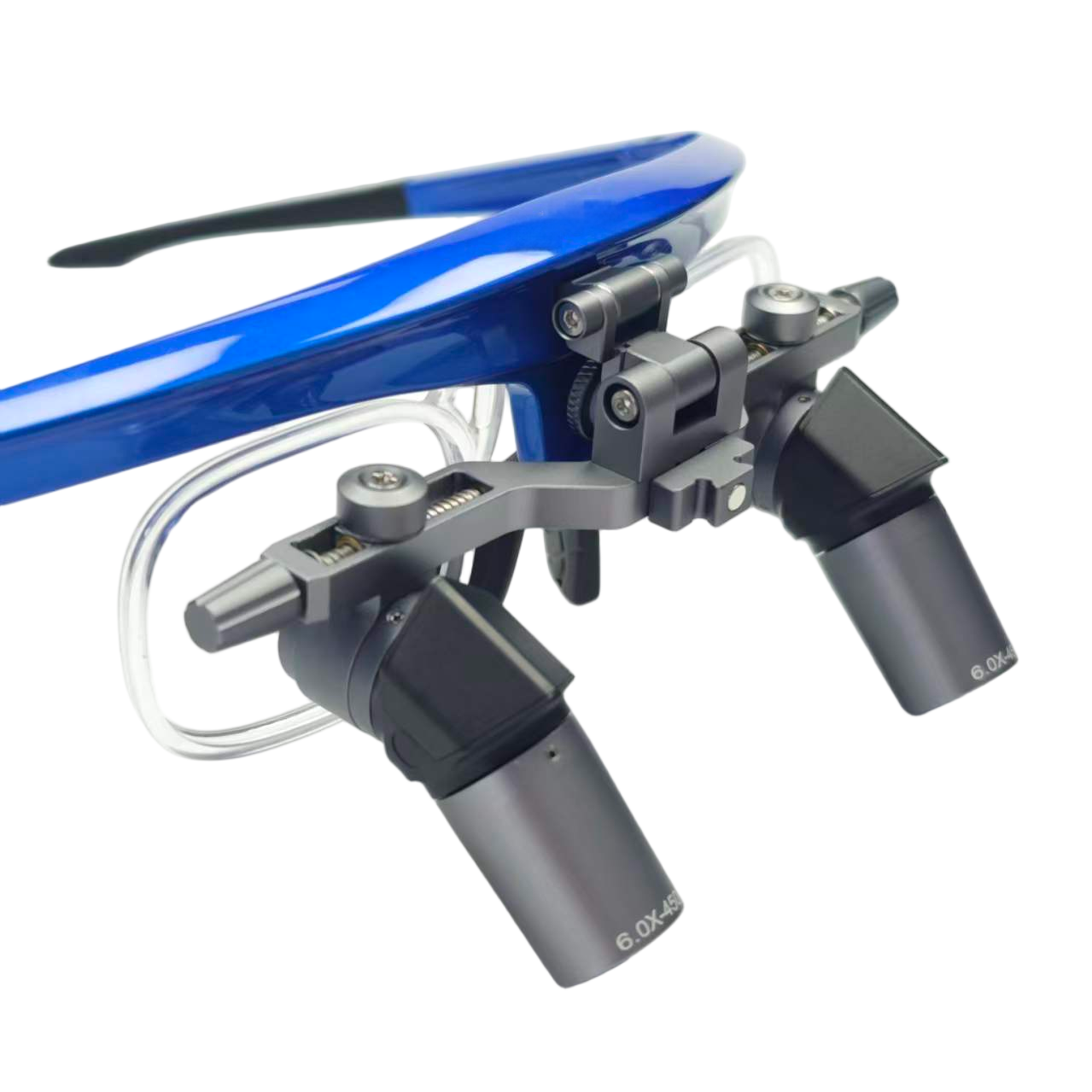

Ergo 45° Flip-Up Deflection Dental Loupes with Detachable Rx Insert & Adjustable IPD (3.0x-6.0x)
Ergo 45° Flip-Up Deflection Dental Loupes with Detachable Rx Insert & Adjustable IPD (3.0x-6.0x)
Couldn't load pickup availability
- Free Global Shipping
- Lifetime Warranty
- 30-Day Return
Core Features:
Advanced Ergonomic 45° Deflection Design
Features high-quality prisms that deflect the optical path downward by 45°, enabling a natural, upright working posture. This design optimizes clinical ergonomics, supporting long-term professional comfort and sustained focus during extended procedures.
High-Precision Apochromatic Optical System
Engineered with advanced apochromatic optics to ensure superior color accuracy and edge-to-edge clarity. It delivers high-definition imagery with exceptional fidelity, providing optimal visual support for intricate clinical tasks.
Versatile Magnification for Professional Needs
Available in 3.0x to 6.0x magnification with an expansive field of view (up to 105mm) and an optimized depth of field, catering to a wide range of restorative and precision dental procedures.
Precision Flip-Up Mechanism & Custom Fit
Features a stable Flip-Up hinge system for seamless switching between magnified and unmagnified viewing. The fully adjustable interpupillary distance (IPD) and vertical viewing angles ensure a personalized, secure fit for every professional.
Ultra-Lightweight All-Day Performance
Engineered for lightweight performance (64g–67g), these loupes are perfectly balanced for stable, all-day wear. The streamlined frame design ensures a high-end professional aesthetic without compromising on durability or stability.
Technical Specifications Sheet
| Magnification | Working Distance (mm) | Field of View (mm) | Depth of Field (mm) | Interpupillary Distance Range (mm) |
Weight (g) |
|---|---|---|---|---|---|
| 3.0x | 450-550 | 85-105 | 95-135 | 50-80 | 64 |
| 4.0x | 450-550 | 70-95 | 80-110 | 50-80 | 65 |
| 5.0x | 450-550 | 60-75 | 70-115 | 50-80 | 66 |
| 6.0x | 450-550 | 50-70 | 55-75 | 50-80 | 67 |

FAQ
1.How do I choose the right magnification for my practice?

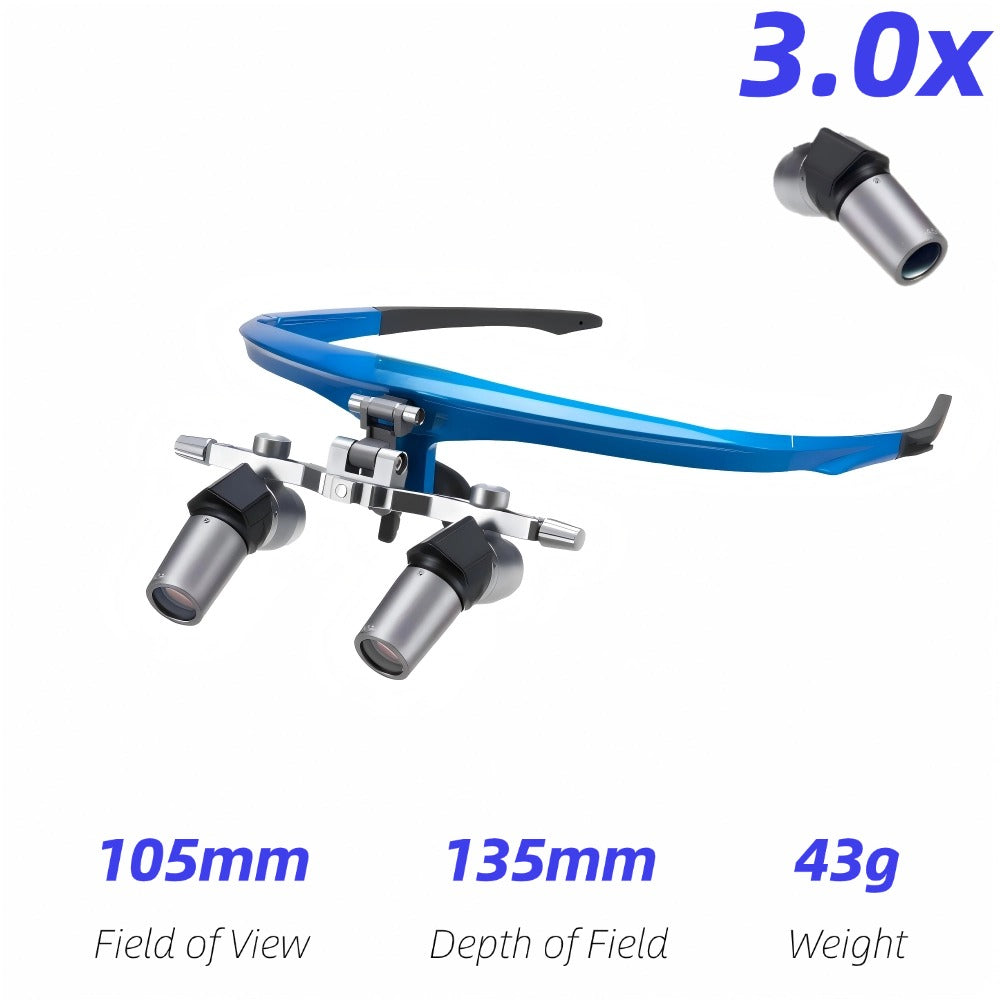

3.0x – The "Daily Driver" (General Practice & Hygiene)
- Best for: General examinations, hygiene, and basic restorative work.
- Why choose it: It offers the widest field of view (up to 105mm) and the deepest depth of field. If you are new to magnification or 45° deflection, this is the easiest to adapt to while providing excellent clarity for daily tasks.
4.0x – The "Versatile Balanced" (Restorative & Cosmetic)
- Best for: Crown and bridge work, aesthetic dentistry, and general surgery.
- Why choose it: This is the "sweet spot" for many clinicians. It provides a significant leap in detail over 3.0x while maintaining a generous enough field of view to see multiple quadrants.
5.0x – The "Precision Specialist" (Endodontics & Fixed Prosthodontics)
- Best for: Root canal therapy, fine preparations, and intricate margin finishing.
- Why choose it: When micro-level detail is non-negotiable. At 5.0x, you can identify fine fractures and canal orifices with ease. Note: The field of view is narrower (approx. 75mm), so it requires a more stable head position.
6.0x – The "Microsurgery Master" (Complex Surgery & Micro-Endo)
- Best for: Microsurgery, complex endodontics, and high-precision suturing.
- Why choose it: For the specialist who requires the ultimate visual advantage. It delivers extreme HD detail, though it is recommended for users who are already comfortable with high-magnification optics.
2. How exactly does the 45° design protect my neck and back?
Traditional loupes force you to tilt your head downward, putting significant strain on the cervical spine. Our 45° deflection prisms allow you to look straight ahead while the optical path is directed downward. This maintains a neutral, upright posture, effectively preventing long-term occupational strain.
3. What makes the Apochromatic Optical System different?
Our advanced apochromatic optics are engineered to eliminate chromatic aberration (color fringing). This results in superior color fidelity and edge-to-edge clarity, providing a high-definition view that is essential for precision microsurgery and intricate procedures.
4. Are these loupes comfortable for an 8-hour shift?
Yes. Weighing only 64g–67g (excluding the frame), these are among the lightest ergonomic loupes on the market. The weight is balanced across the bridge and ears to ensure zero-pressure comfort during long clinical sessions.
5. How do the magnetic battery packs work with the LED headlight?
The integrated 35,000 Lux headlight uses a magnetic quick-connect system. This allows you to "hot-swap" batteries with one hand without removing the loupes. Each pack provides 4–6 hours of continuous light, ensuring you never run out of illumination.
6. Can I adjust the Interpupillary Distance (IPD) by myself?
Absolutely. The SCE300 series features a wide IPD adjustment range (50mm–80mm). You can easily calibrate the distance between the two optical barrels to match your unique eye position for a single, clear, and focused image.
7. Can I use these loupes with my own prescription (RX) lenses?
Yes. Our frames are designed to accommodate high-quality RX inserts. If you wear prescription glasses, we provide guidance on how to integrate your lenses into the Oradenix system for optimal vision.
8. What is covered under the Lifetime Technical Warranty?
Oradenix provides a limited lifetime warranty covering the structural integrity of the frames and the optical alignment of the prisms. We ensure that your equipment remains a reliable partner throughout your professional career.
9. Is the orange filter necessary for the headlight?
The included orange filter is highly recommended for professionals working with light-cured resins. It prevents premature curing of materials under the powerful 35,000 Lux LED light, giving you more time for precise placement.
10. How is global shipping handled, and will there be customs fees?
We provide insured worldwide express shipping. While shipping is free for most regions, buyers are responsible for any local import duties or taxes. We recommend monitoring your tracking number to ensure smooth customs cooperation.
- 5 stars: 18 (95%)
- 4 stars: 1 (5%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
The magnification is accurate and the focus is stable. It has definitely improved the precision of my restorative work.

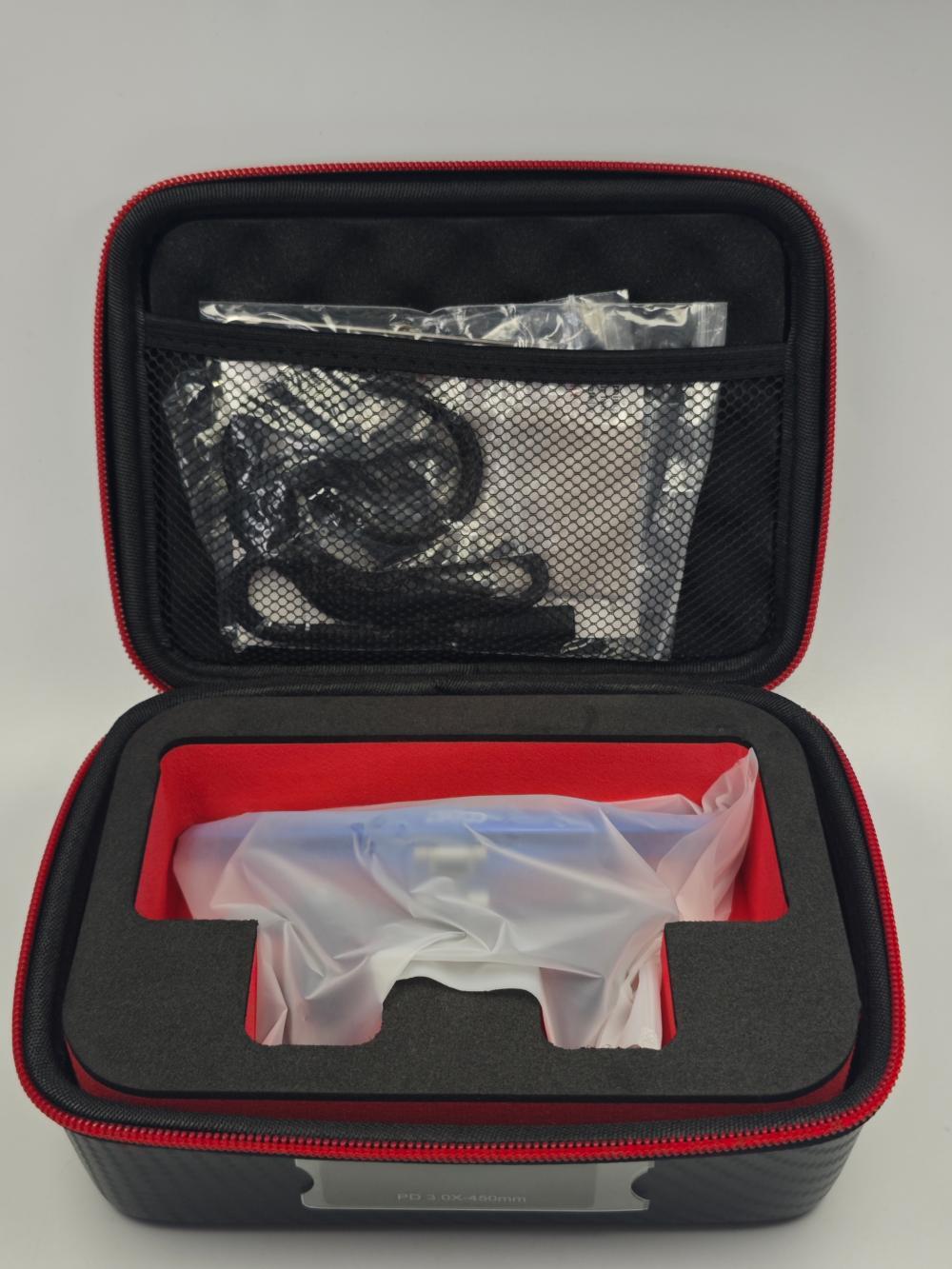

I'm incredibly impressed with this whole package. The case itself is fantastic, with that neat red zipper detail. The loupes have this vibrant blue frame and a sturdy flip-up design that feels very precise. It's not just the main unit, though; the attention to detail with the inclusion of the spare clear lens guards and the adjustment tool in those separate bags makes it a complete, professional kit. I've been using them for a week now, and the deflected optics (which I believe are the 45°model from the previous discussion) have made a huge difference in my daily comfort. My neck doesn't ache anymore! Highly recommend for anyone looking to save their spine.
We ordered 5 pairs for our associates. Everyone is impressed with the lightweight frames and the build quality. Oradenix is professional.
For a deflected loupe, the FOV is quite impressive. I can see the entire arch without moving my head too much.
We've tried several suppliers, but the clarity of the Oradenix 45° series is the most consistent for our team.
I feel much more energized at the end of the day. Using these loupes is the best thing I've done for my health.
Had a small issue with the headband adjustment, and their support sent me a video guide immediately. 5-star service.
Used these for some micro-suturing today. The 45-degree angle makes the ergonomics of the chair so much better.
The frames feel very durable and hold the interpupillary settings perfectly. Doesn't feel cheap at all.
Arrived in a very professional case. The lens caps and cleaning cloth included are high quality too.
The depth of field is generous. I don't have to keep adjusting my head position to stay in focus. Highly recommended.
I wish I had bought these years ago. My chiropractor noticed the difference in my back muscles within a month.
Unlike my old heavy loupes, these don't slide down or cause headaches. Very comfortable for long procedures.
Was skeptical about international shipping, but it arrived in Sydney in 8 days. Well packaged and professional service.
I was looking at brands charging $3000+, but these do the job perfectly at a much better price. The quality is solid.
As an endodontist, I spend hours looking down. These loupes allow me to look straight ahead while working. No more fatigue at 5 PM.
It took me about 3-4 days to get used to the new visual angle, but now I can't go back to traditional loupes. My posture is finally correct.
The optical quality is surprisingly sharp. I was worried about distortion with the deflected prisms, but the view is crisp from edge to edge.
I used to have chronic neck pain after a full day of extractions. Since switching to these loupes, I can sit completely upright. It's a total life changer.
